THBC Electronic
Easy-To-Install, Bolt-Down Design
The THBC electronic load cell kits are engineered for medium-to-heavy capacity weighing applications including tanks, hoppers, mixers, and conveyors. Designed for both new installations and retrofits, these systems provide dependable performance in demanding environments. Featuring stainless steel SB series shear beam load cells and rugged self-checking stands, the THBC kits ensure accurate measurements while protecting against off-center loading. Their low-profile, bolt-down design simplifies installation and supports multi-legged tanks with up to 10 legs, making them a versatile solution for industrial weighing systems.
The THBC Electronic Load Cell Kits are designed for medium- to heavy-capacity tank, hopper, silo, mixer, and conveyor weighing applications that require rugged construction, reliable performance, and straightforward installation. Ideal for both new installations and retrofit projects, these complete weighing modules provide an efficient solution for adding accurate weight measurement to process vessels, bulk storage systems, and material handling equipment.
Built around stainless steel SB Series shear beam load cells, the THBC kits deliver dependable performance in demanding industrial environments where moisture, temperature fluctuations, vibration, and harsh operating conditions are common. The environmentally sealed, NTEP-, OIML-, and VCAP-certified load cells provide accurate and repeatable weight measurements while offering long-term durability for indoor and outdoor applications.

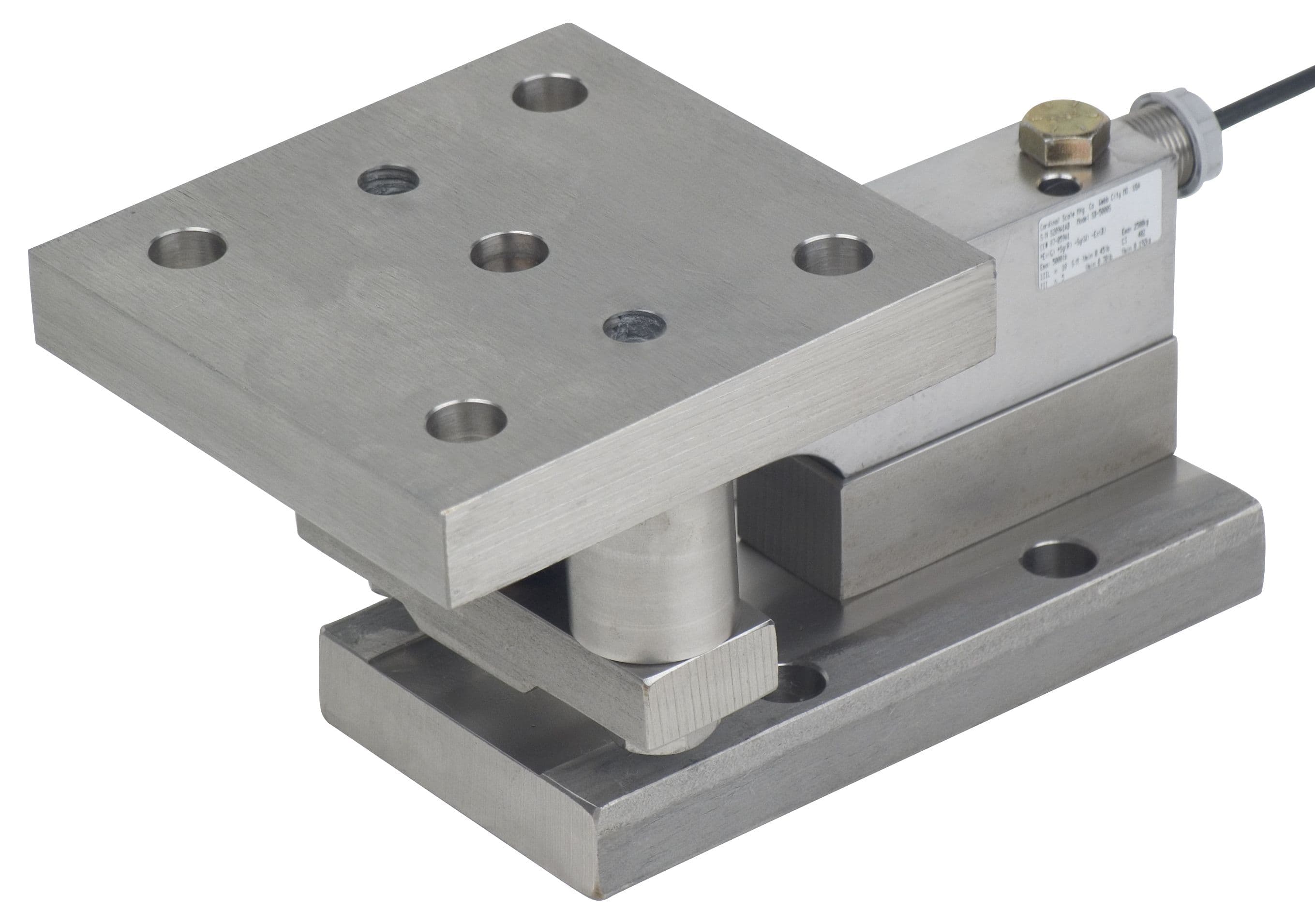

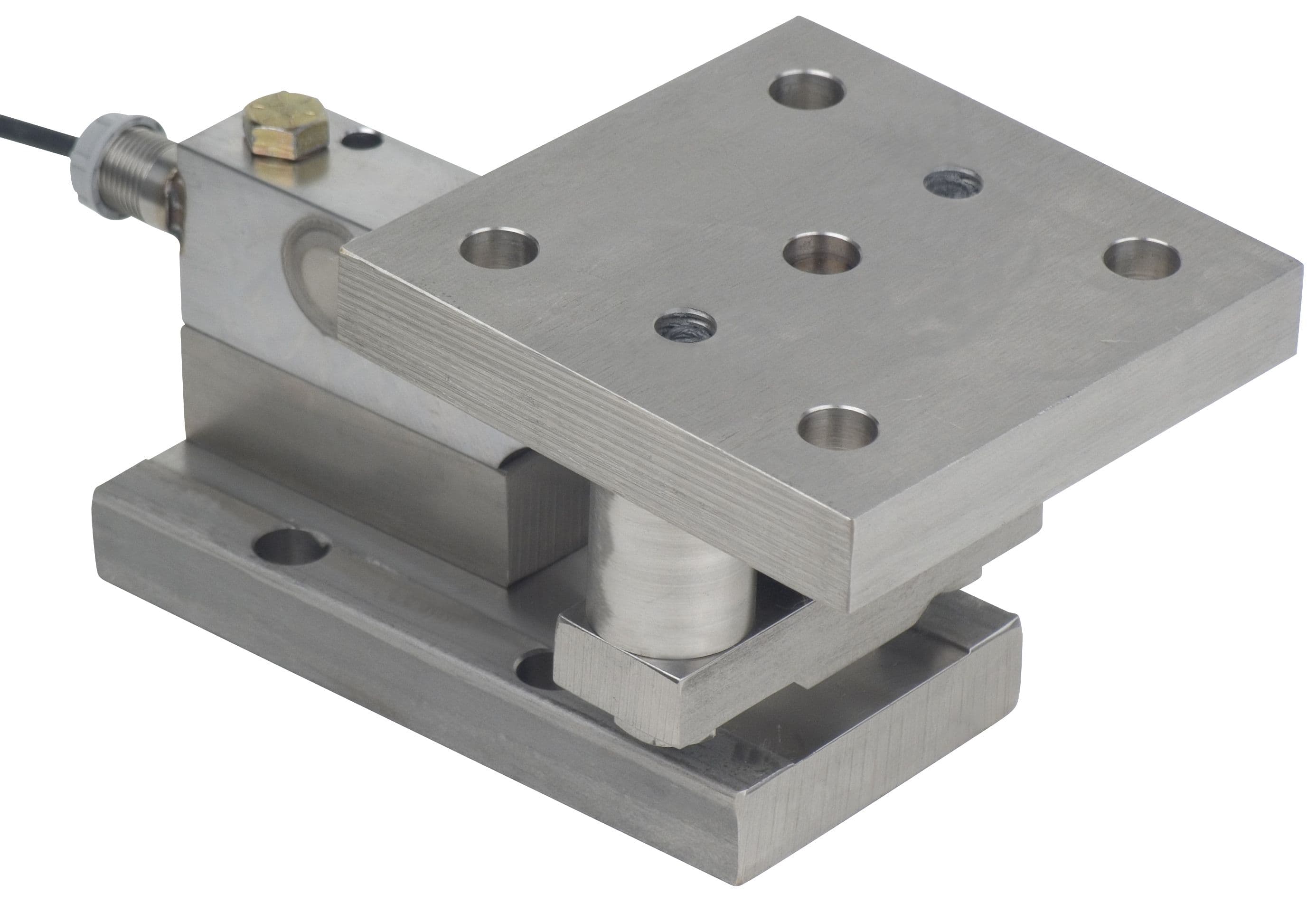

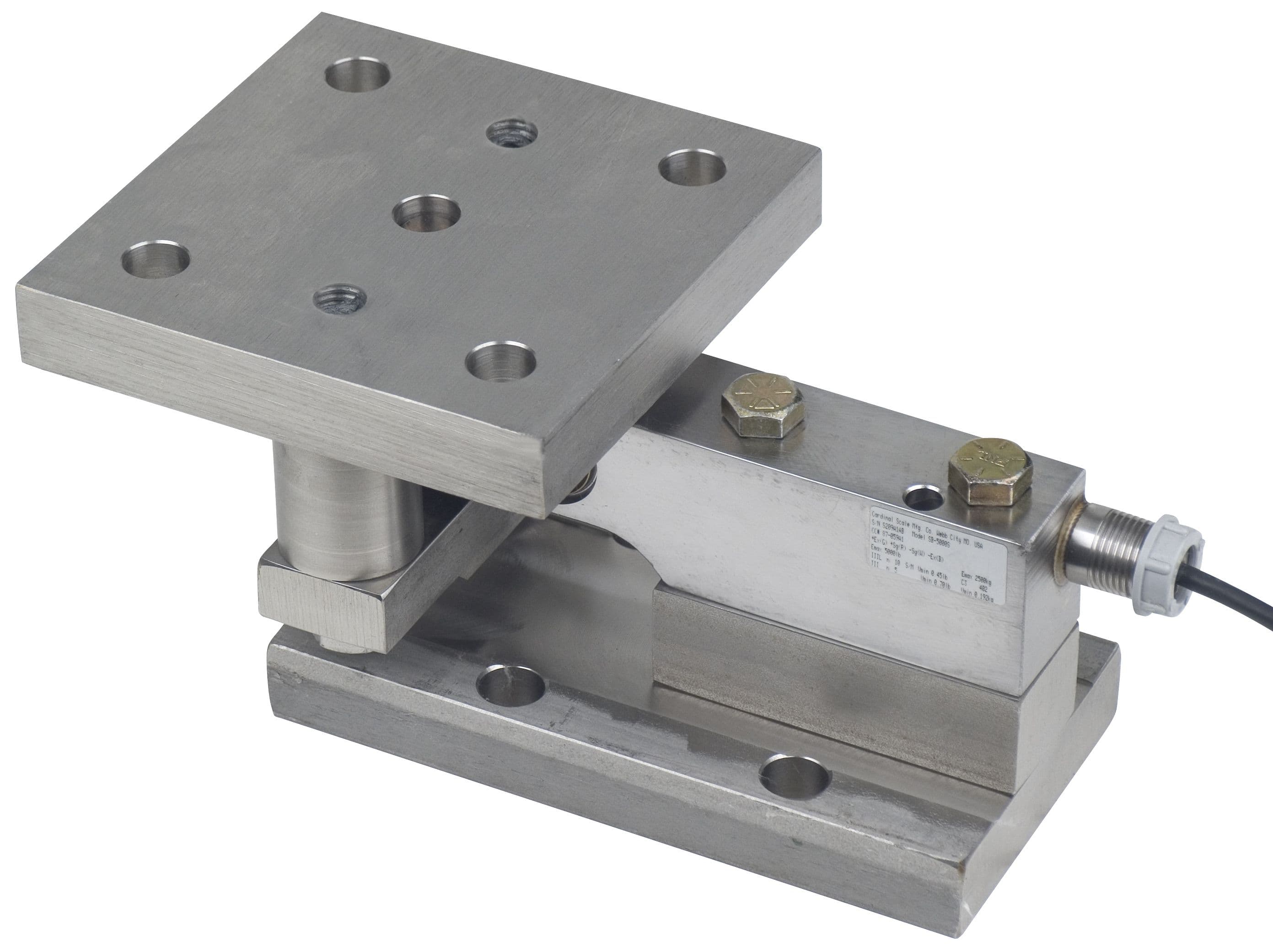

Available in system capacities ranging from 7,500 lb (3,400 kg) to 200,000 lb (90,700 kg), the THBC Series is well suited for a wide variety of vessel weighing applications. The modular design accommodates multi-legged tanks with up to ten support legs, making it an excellent solution for larger process vessels, storage tanks, blending systems, and bulk material handling operations. Self-checking stands and self-centering load buttons help maintain proper load alignment and protect against offset side loads, improving weighing accuracy and system stability.

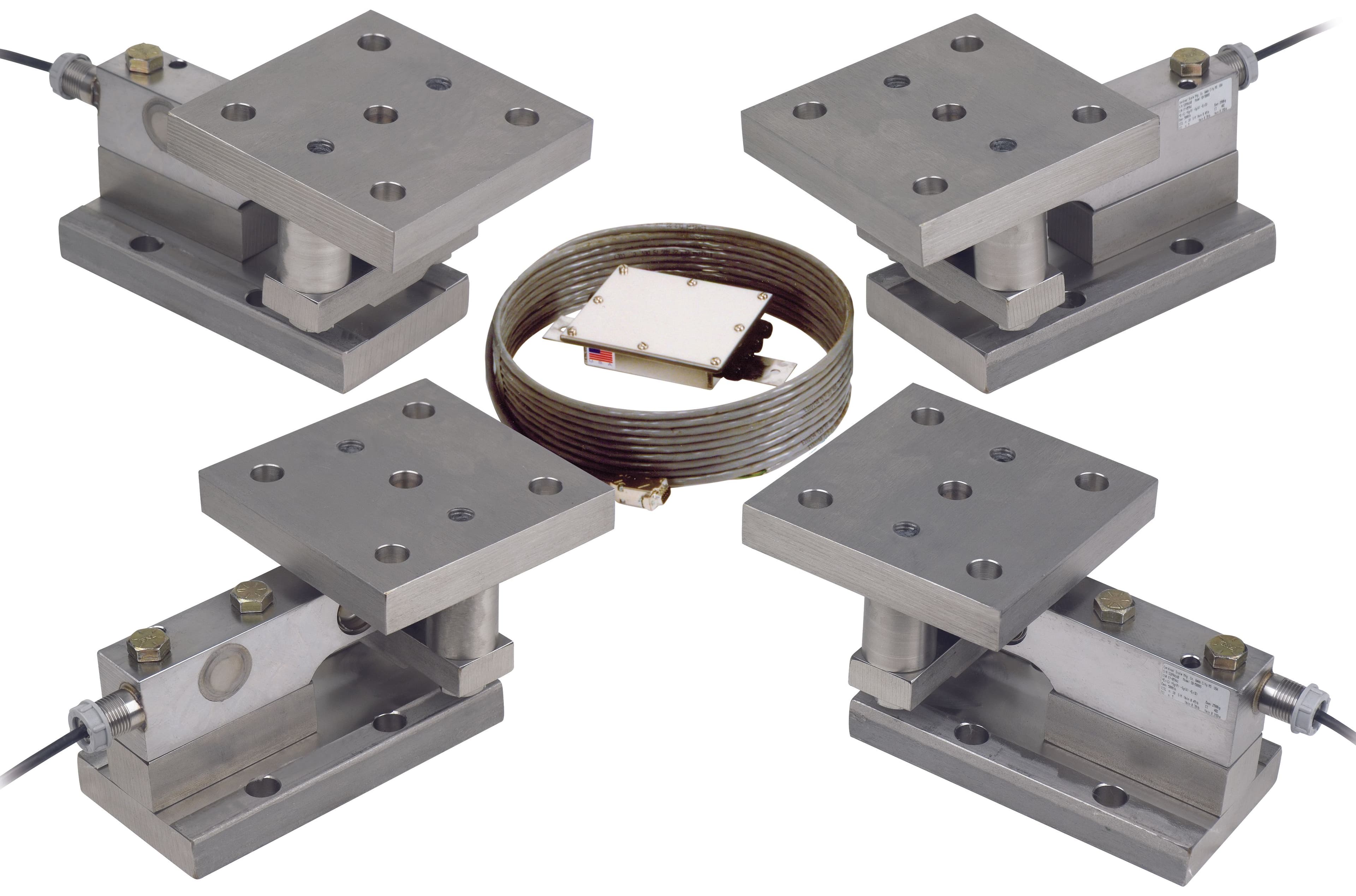

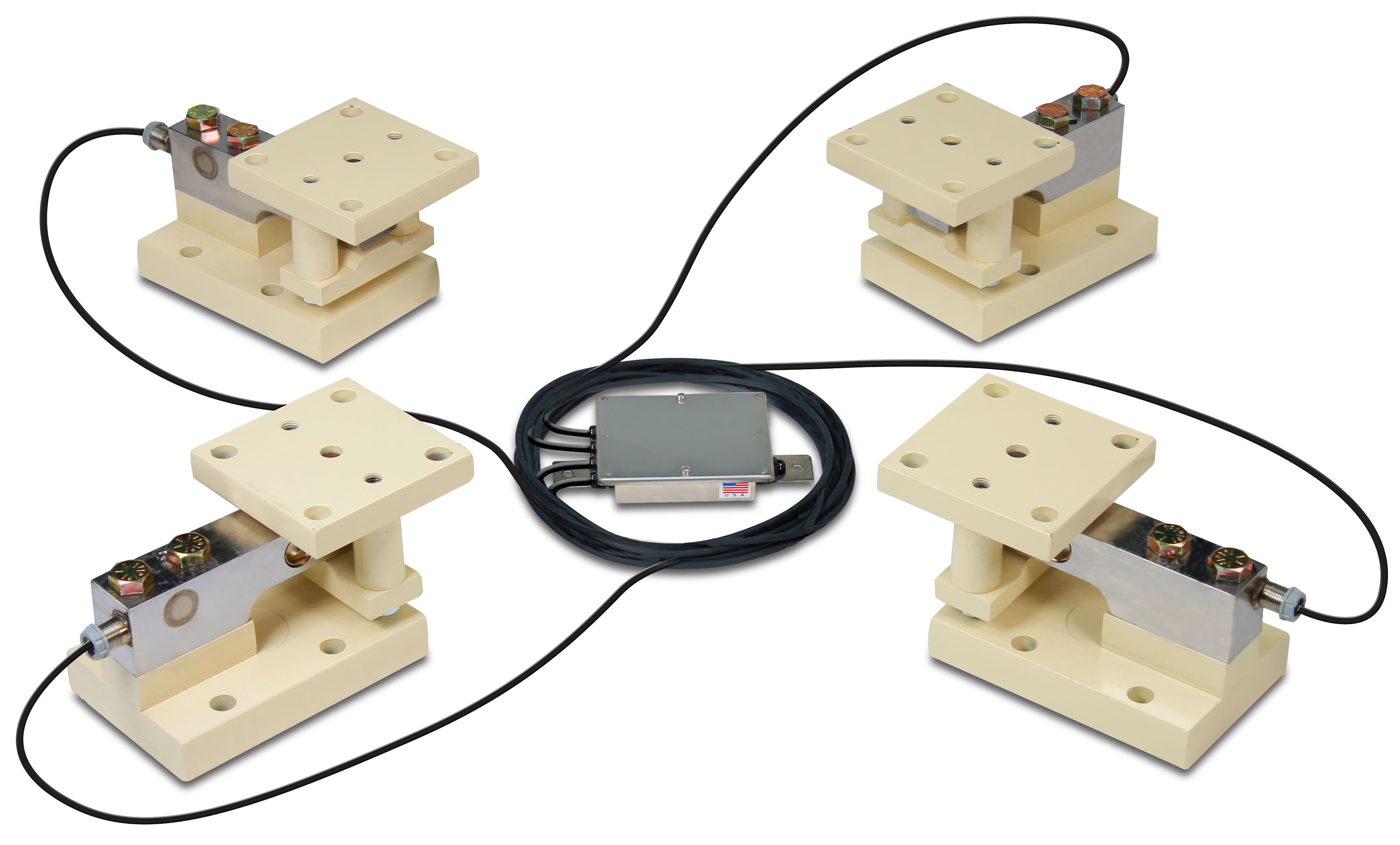

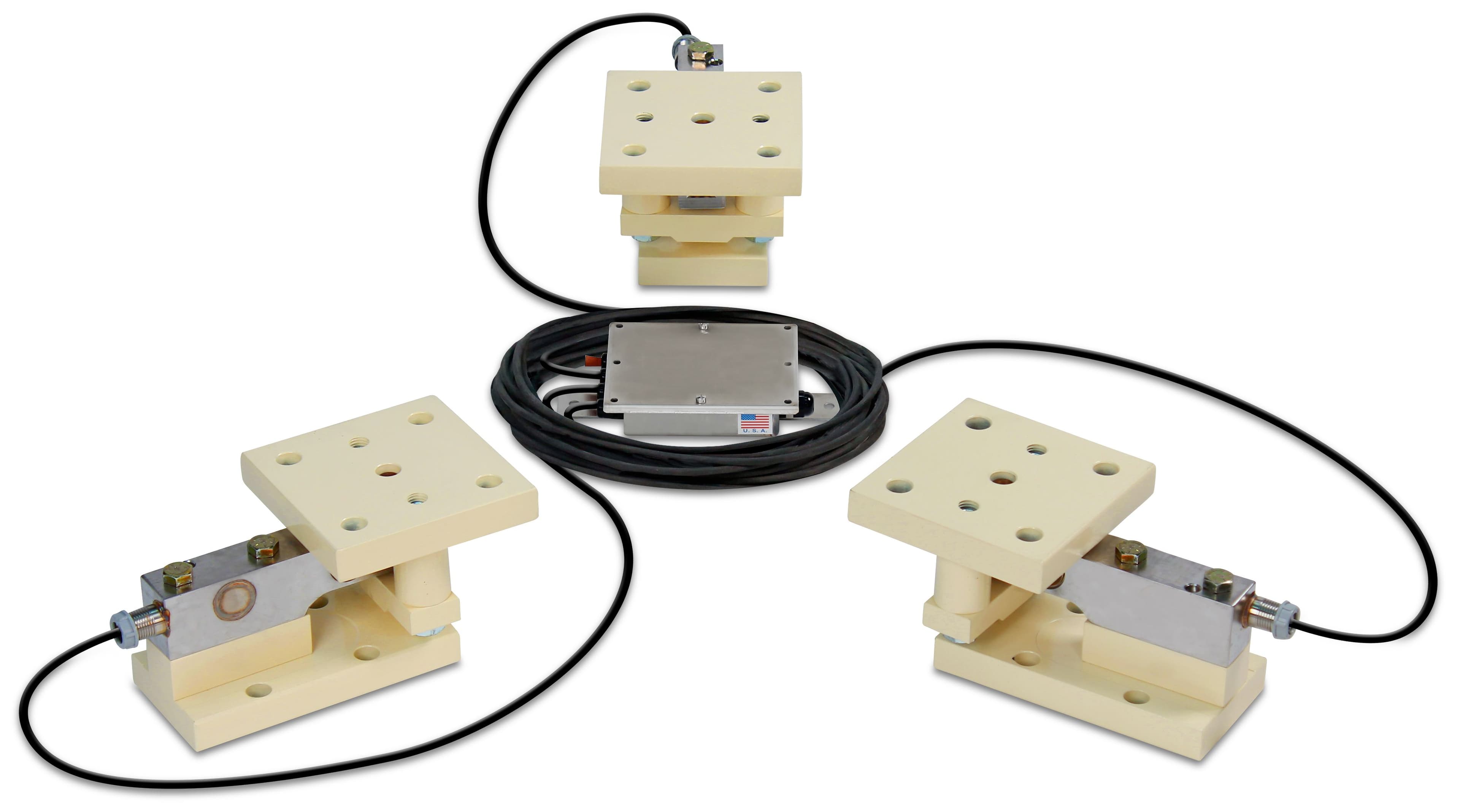

The low-profile, bolt-down design simplifies installation while minimizing modifications to existing structures. Each kit includes three or four stainless steel load cells, self-checking stand assemblies, load cell cable, and a stainless steel NEMA 4 junction box, providing a complete weighing package ready for integration with a wide variety of digital weight indicators.
Whether used for inventory management, batching, blending, process control, or bulk material measurement, the THBC Electronic Load Cell Kits provide a durable and accurate weighing solution for demanding industrial applications. Their combination of heavy-capacity performance, self-checking mounting technology, and rugged stainless steel load cells makes them a trusted choice for vessel weighing systems where reliability and long-term accuracy are essential.
